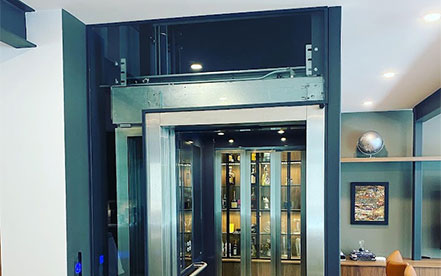

Watch Garaventa Lift Products on TVGeraventa Lift Home Elevator – Hydraulic or In-Line Drive
Smooth, quiet and reliable travel between floors
The Garaventa Lift home elevator combines dependable performance with flexible design options. Choose from a variety of doors, fixtures, colours and finishes to complement your home.
Every Garaventa Lift control system is factory tested. Depending on the selected drive system, emergency lowering features help occupants exit the elevator safely during a power outage.
Designed to make everyday life easier
- Move groceries, laundry and household items between floors
- Improve comfort and accessibility throughout your home
- Make multi-level entertaining more convenient
- Choose hydraulic or space-saving in-line operation
Based in Maple Ridge and serving Vancouver, the Lower Mainland and communities throughout British Columbia.
More information can be found in the Downloads

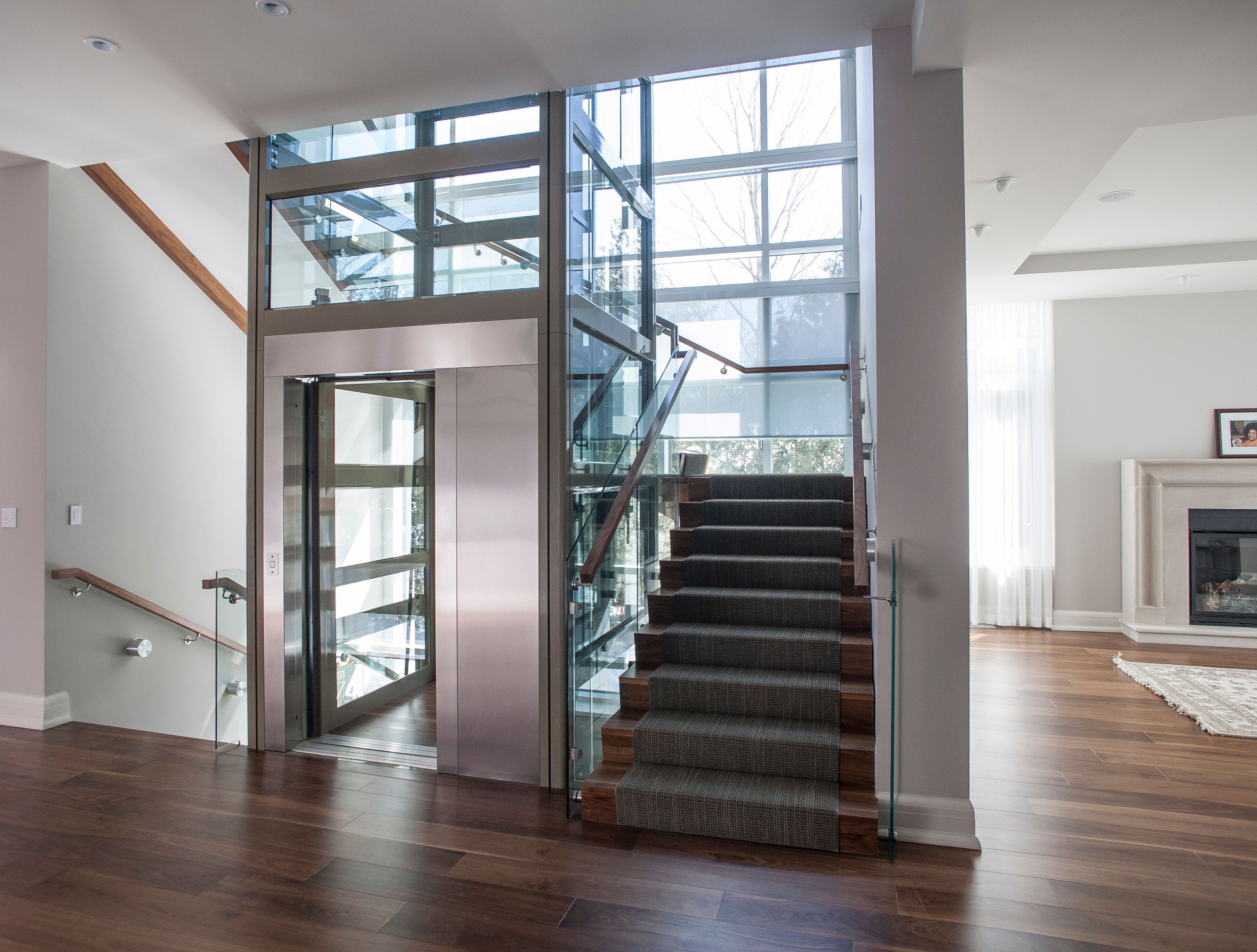

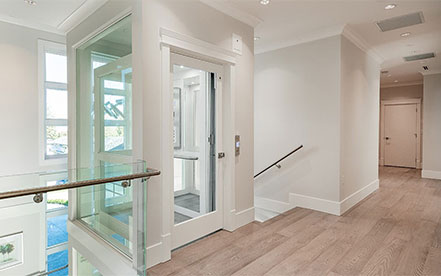

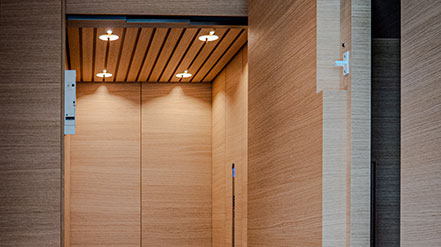

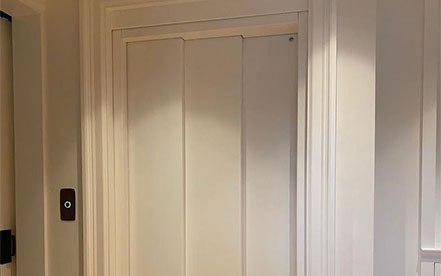

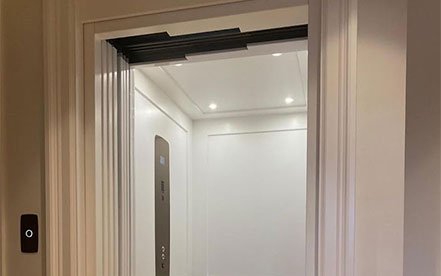

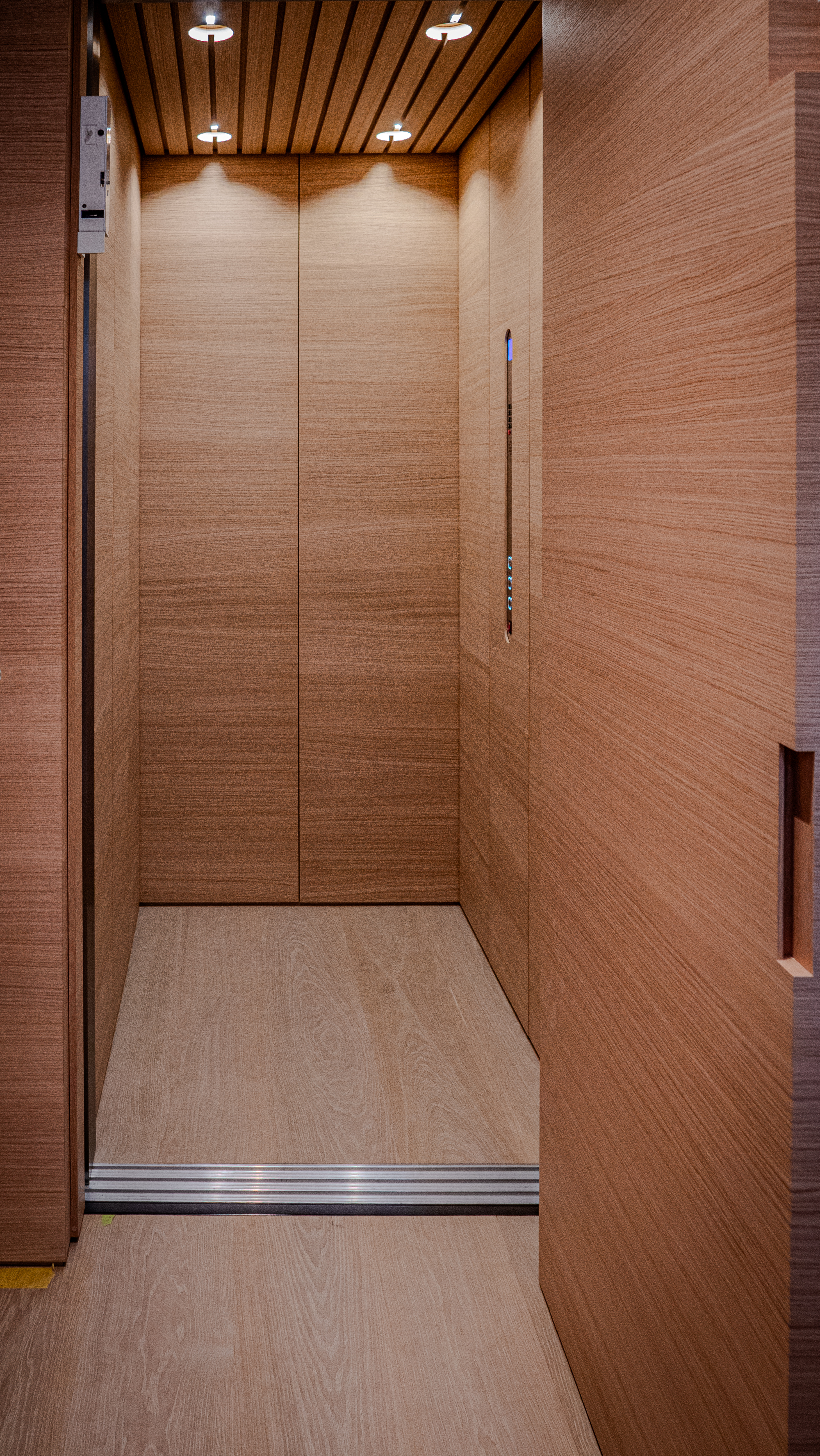

View product downloads and planning resourcesHome Elevator Photo Gallery
Choose the Right Door Package for Your Home Elevator
Three options to match your style, space and budget.

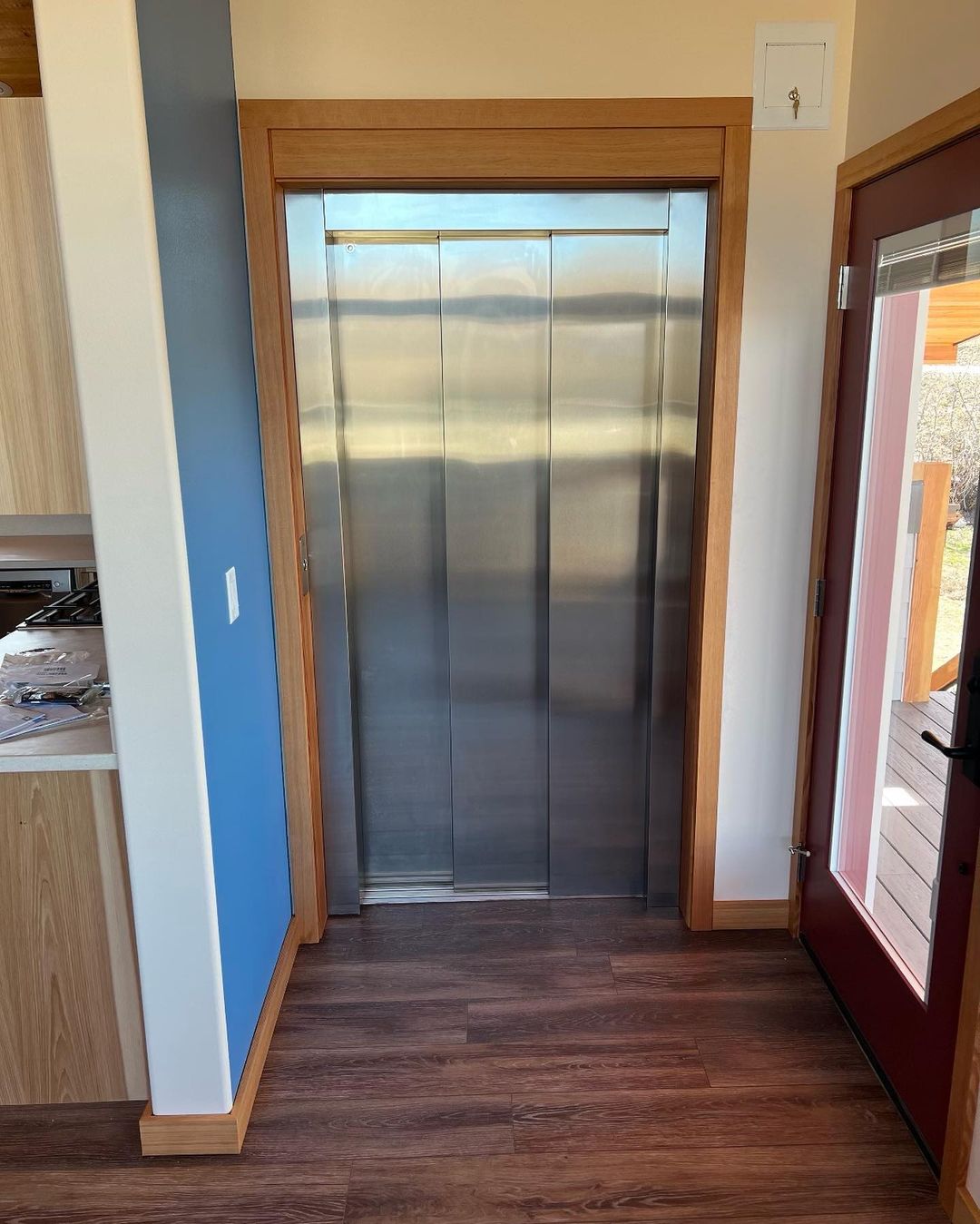

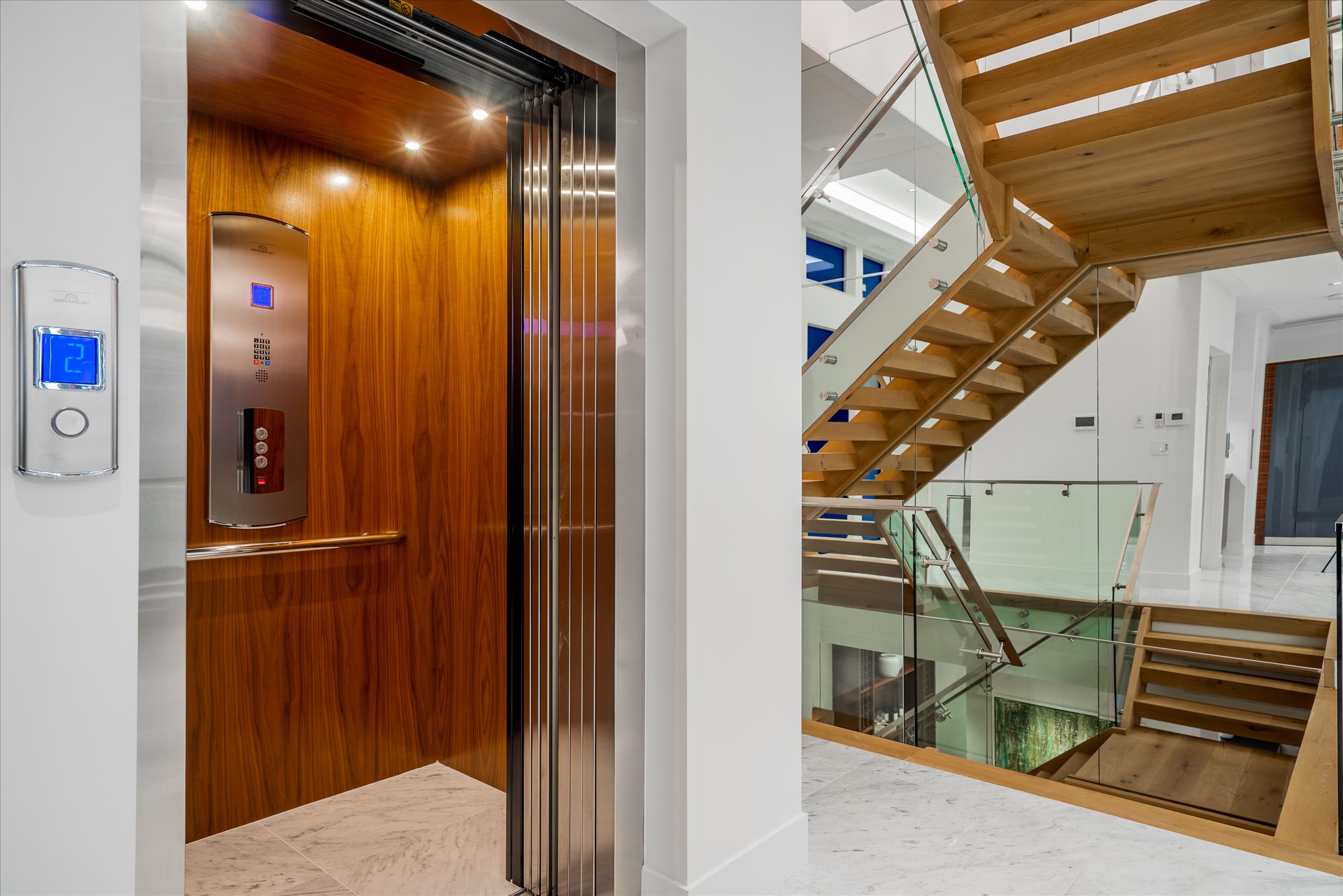

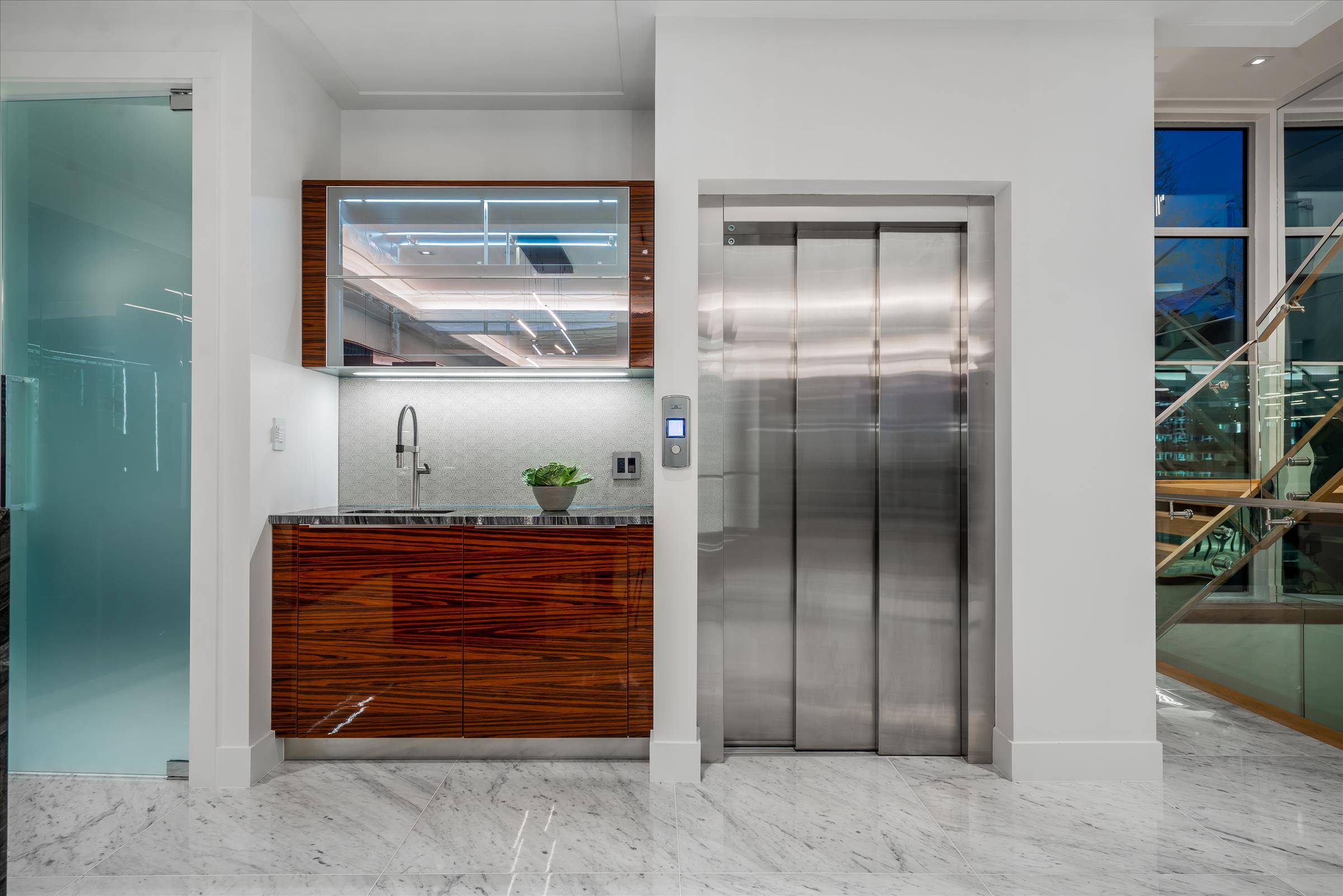

Premium Door Package
Fully Automatic for Luxurious Convenience

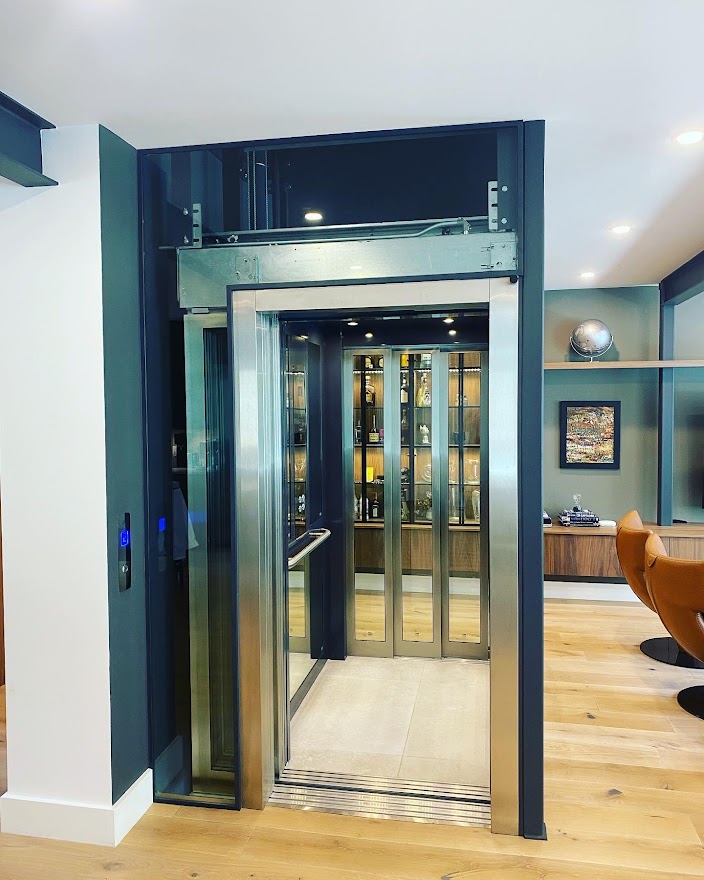

The Premium Door Package includes side-sliding elevator doors for both the car and every landing. As the elevator approaches a landing, the car and landing doors open and close together.
Key Features
- Side-sliding doors for the car and all landings
- Car and landing doors operate together
- Ideal for a seamless, modern look
- Car doors available in white, black, brushed stainless steel or safety glass framed with brushed stainless steel

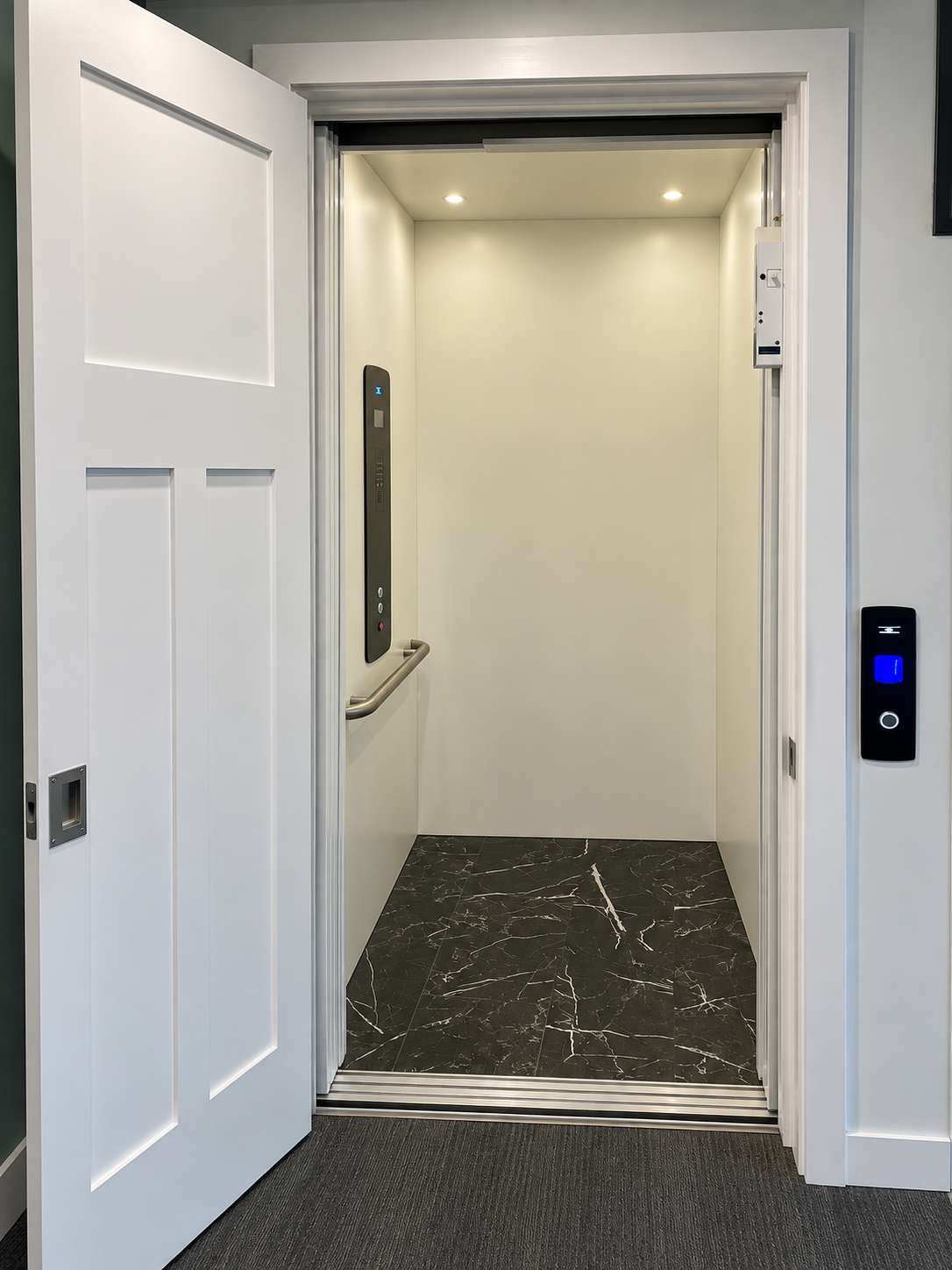

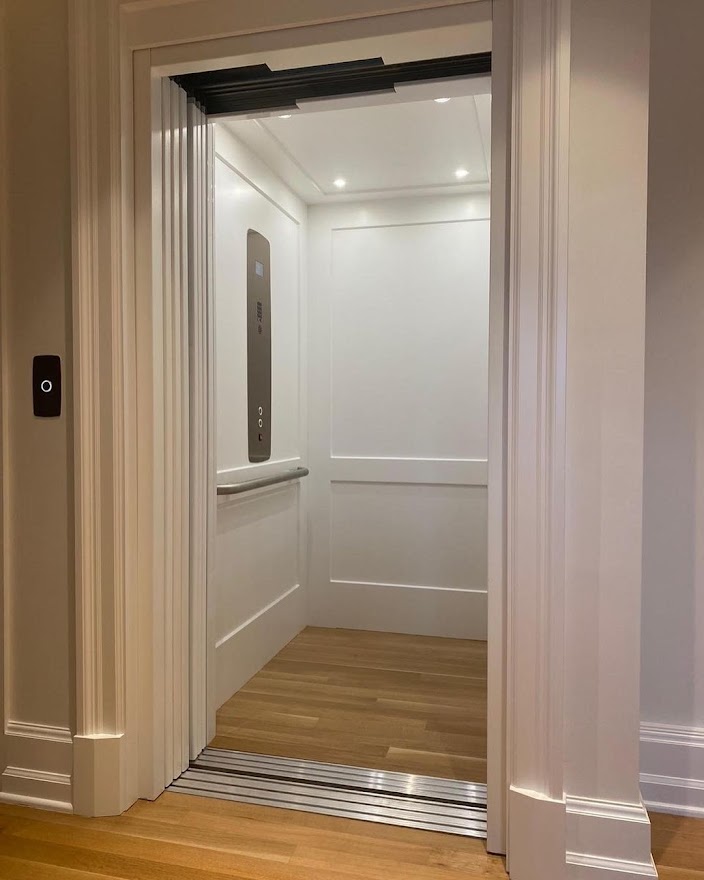

Upgrade Door Package
Sliding Cab Door for Modern Aesthetics
The Upgrade Door Package combines a side-sliding elevator car door with swinging hall doors. The car door opens automatically when the elevator reaches the landing.
Key Features
- Automatic side-sliding elevator car door
- Swinging hall doors
- Optional powered operators for the swinging hall doors
- Car doors available in white, black, brushed stainless steel or glass framed with brushed stainless steel

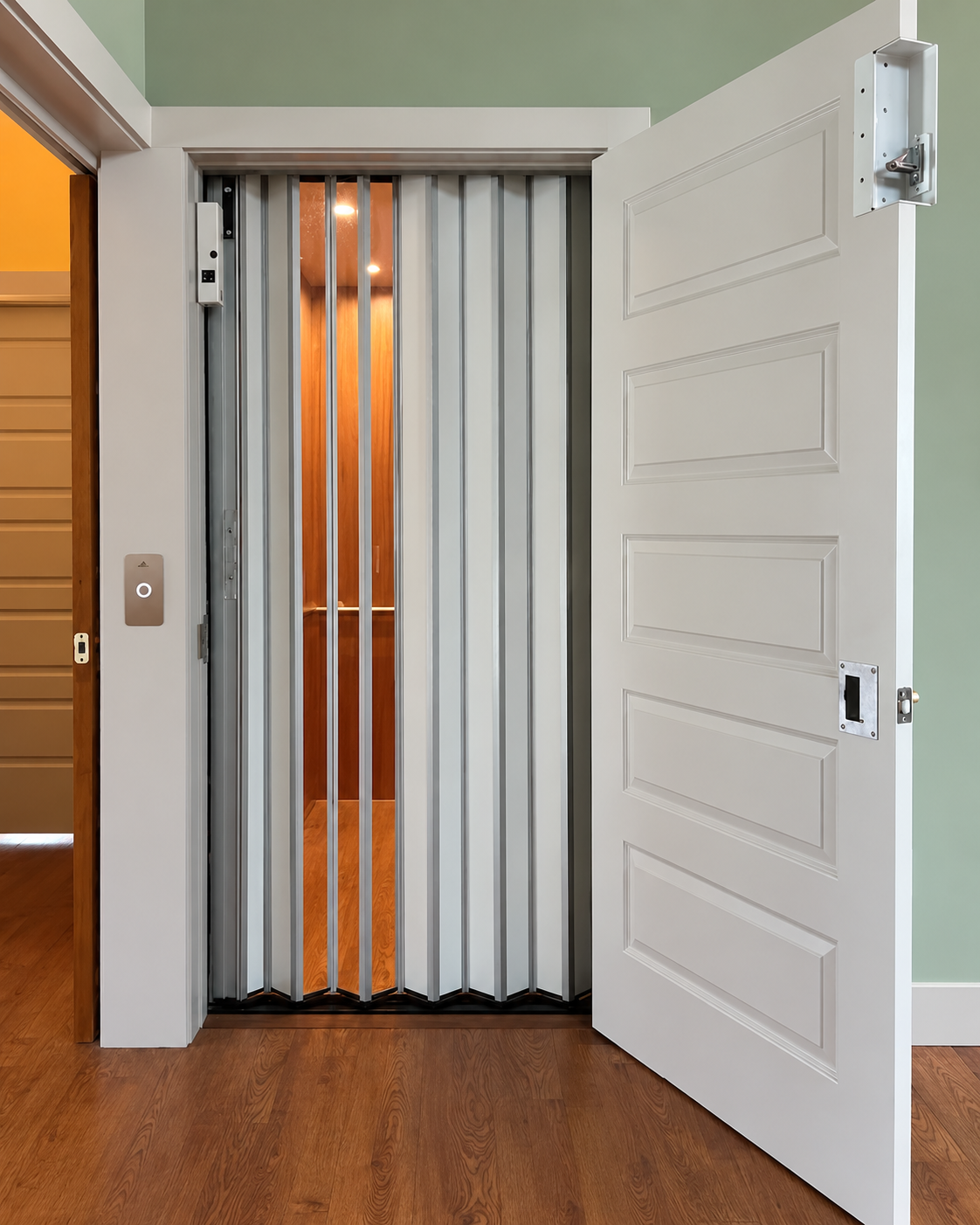

Standard Door Package
Traditional Design and Compact Footprint
A classic residential elevator using swing doors and an accordion gate that travels with the rider. A reliable and space-saving solution.
Key Features
- Full-height accordion car gate
- Optional powered hall-door and car-gate operators
- Standard black or white gate panels
- Available with or without three clear acrylic vision panels near the handle
Contact Garaventa Lift BC for Home Elevator Installation
Our team is here to help you find the right solution for your home.
11393 Kingston St,
Maple Ridge, BC
V2X 0Y7
Mon–Fri: 8:00 AM – 4:30 PM
Mon–Fri: 8:00 AM – 4:30 PM
Looking for a Home Elevator in BC?
Schedule a consultation with Garaventa Lift BC today.
Or call us directly: 604-461-6636
Specifications
| Overhead Clearances Required: | HydraulicDrive | In-LineDrive | In-LineDrivew/Controller at top of hoistway |
| 84" Cab height - standard door pkg. 84" Cab height - upgrade / premium door pkg. | 96" (2438 mm) 96" (2438 mm) | 96" (2438 mm) 96" (2438 mm) | 108" (2743 mm) 114" (2896 mm) |
| 96" Cab height - standard door pkg. 96" Cab height - upgrade / premium door pkg. | 108" (2743 mm) N/A | 108" (2743 mm) N/A | 120" (3048 mm) N/A |
| Rated Load: | Standard 750 lbs (340 kg) or 1,000 lbs (455 kg) | ||
| Speed: | 40 ft/min (12.2 meters/min) nominal speed | ||
| Travel Range: | Up to 50 feet (15.2 m) | ||
| Stops: | Up to 6 stops | ||
| Standard Controls: | Fully automatic push button operation | Digital floor indicator in car | Automatic car lighting upon entry |Illuminated push buttons | ||
| Standard Safety Features: | Battery-powered emergency lowering | Safety brake system | Car door and hall door safety monitoring system | Emergency stop and alarm | ||
| Hydraulic Drive System: | 1:2 cable hydraulic drive | Quiet submersed pump and motor | Two-speed valve for smooth start and stop | ||
| In-Line Drive System: | Geared direct drive motor | Variable frequency drive for smooth start and stop | Speed monitor | ||
| Power Requirements: | 230 VAC single phase | Optional 208 VAC 3 phase (Hydraulic Drive only) | ||
| Popular Options: | Premium fixtures | Integral emergency telephone | 3-speed sliding doors | ||
| Flooring: | By others to match the home decor | Minimum 1/8" thick | Maximum 3/4" thick | ||
| Warranty: | 2 year parts warranty, labour is tied to a mandatory planned maintenance program |
Downloads
Find more documents on our Architect & Builder Resources page
Home Elevator FAQs
Answers to common questions about home elevator pricing, space requirements, installation and features.
Garaventa home elevators start at $32,000, including local manufacturing, delivery, professional installation, a CSA letter confirming code compliance, a CECA installation permit, and one year of complimentary maintenance. Pricing can vary depending on site conditions, number of stops, door configuration, finishes, and selected options. Contact Garaventa Lift BC for pricing specific to your home and project.
A Garaventa Lift home elevator can fit in a space as small as approximately 4'3" × 4'8" (51½" × 56½") , depending on the elevator configuration and project requirements. Our team can review your available space and help determine the right configuration for your home.
Yes. A home elevator can be incorporated into many existing homes as well as new construction. The available space, floor layout and structural requirements will help determine the best elevator location and configuration for the project.
The Elvoron is available with either a hydraulic or an in-line drive system. The hydraulic system uses a compact drive cabinet located outside the hoistway. The in-line system is a machine-room-less design with most drive components located within the hoistway, making it a space-saving option for many homes.
The Garaventa Lift home elevator can serve up to 6 stops with a travel distance of up to 50 ft (15.2 m) , depending on the project configuration.
Garaventa Lift home elevators are available with several door configurations, including traditional swing doors with an accordion car gate, an automatic sliding car door with swing landing doors, and fully automatic side-sliding car and landing doors. Finishes and other options are available to complement the design of your home.
